BLY110 Four Speed Gearbox

Product Description
BLY110 gearbox is a parallel shaft four-speed transmission, which is a cylindrical gear transmission. The input shaft and the output shaft are parallel, and the foot is installed. The gear is made of high-quality low-carbon alloy steel, the gear accuracy reaches level 6 after carburizing, quenching, and gear grinding.The gear pair runs smoothly, with low noise and high transmission efficiency.

Technical features
1. Four-speed gearshift, variable-speed ratio 1.654, reduction gear ratio 1.1、1.82、3.01、4.98， output stage center distance 110mm
2. Allowed output torque:160-400 Nm
3. Structure types: Cylindrical gear transmission, the input shaft is in parallel with output shaft, gear rack shift fork
4. Installation method :Foot mounting

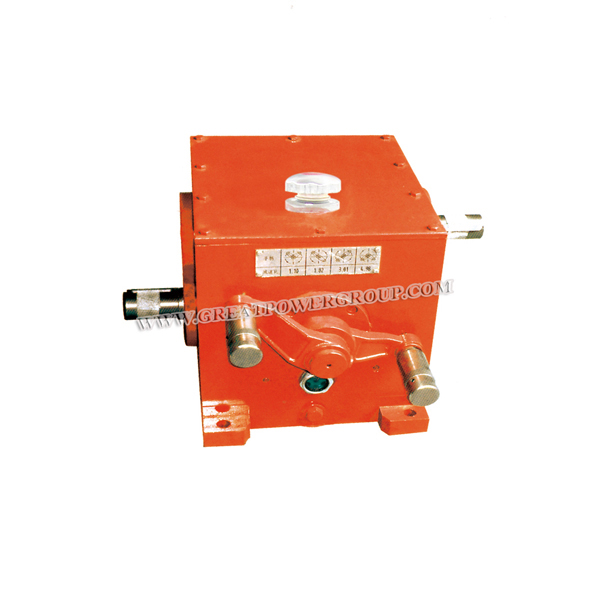

5. Assembly Style: Above picture shows for I style, and the II type could be reached by
    interchanging input and output shaft .
6. Recommended motor power 11-15KW, input speed is not more than 1500RPM

Application
BLY110 gearbox is mainly used for crawler tractors.

FAQ

Q:How to choose a gearbox ?

A:You can refer to our catalogue to choose a product specification or we can also recommend the model and specification after you provide the required motor power, output speed and speed ratio, etc.

Q: How can we guarantee product quality?
A:We have a strict production process control procedure and test every part before delivery.Our gear box reducer will also carry out the corresponding operation test after installation, and provide the test report. Our packing is in wooden cases specially for export to ensure the quality of transportation.
Q: Why do I choose your company?
A: a) We are one of the leading manufacturers and exporters of gear transmission equipment.
    b) Our company has made gear products for about 20 years more with rich experience and advanced technology.
    c) We can provide the best quality and best service with competitive prices for products.

Q:What's your MOQ and terms of payment?

A:MOQ is one unit.T/T and L/C are accepted,and other terms can also be negotiated.

Q: Can you supply the relevant documentation for goods?

A:Yes, we can provide most documentation including operator manual, testing report, quality inspection report, shipping insurance, certificate of origin, packing list,commercial invoice, bill of lading,etc .
