SZ Series Conical Double-Screw Gearbox

Product Description

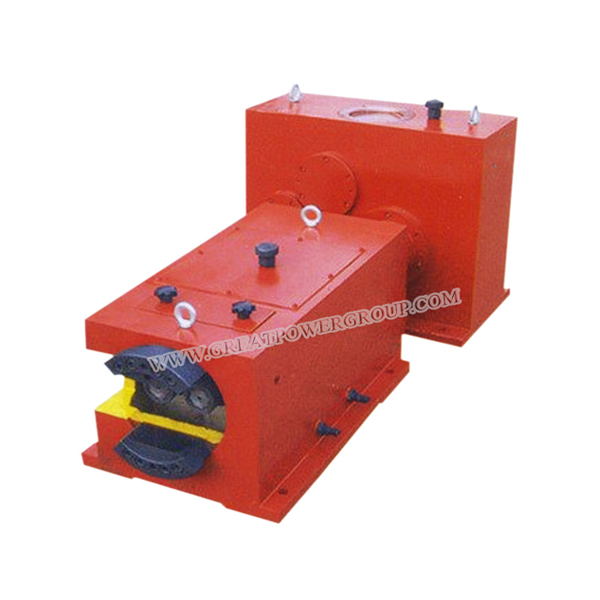

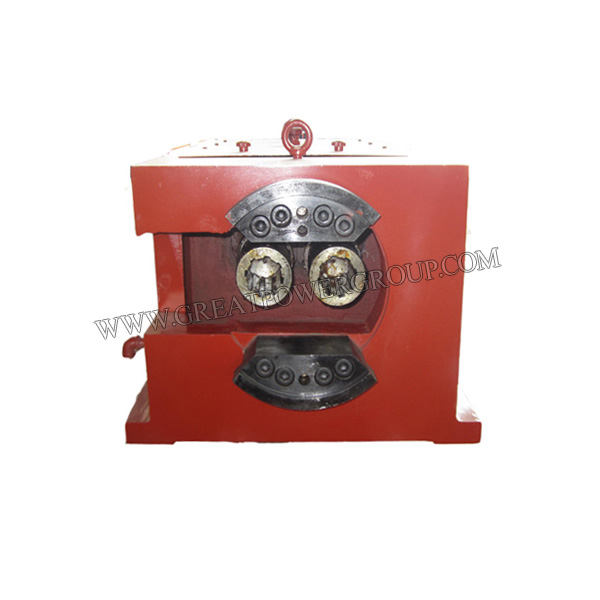

SZ series gearbox for conical twin-screw extruder is a special driving unit matched with conical twin-screw rod extruder. It consists of two parts, namely, the reduction box and the distribution box. After reducing speed and increasing torque of the motor, it outputs the motive power to the distribution box, then drives the double output shafts (the included angle is the same with that of twin-screw rods) via a pair of small conical spiral gears with driving ration of 1:1,thus to drive screw rods to rotate outward with different direction.

Product Feature

1.There are involute cylindrical gearbox, which data and structure are optimally designed by the computer.

2.The gears are made of top-quality high strength low carbon alloy steel after carbon penetrating, quench and teeth grinding. It has high hardness on teeth surface, large bearing ability, small noise, smooth operation and high driving efficiency.

3.The material of the distribution box is nodular graphite casting iron and the gears have high-strength ground teeth, in which snake-shaped cooling water pipes are distributed.

4.The maximum input speed of the gearbox is normally not larger than 1500 rpm.

5.The temperature in work environment is -10℃-45 ℃.When temperature is lower than 0℃,the lubricant oil should be preheated to + 10℃ before starting.

Technical Parameter

Application
SZ series gearbox  is widely used in plastic conical twin-screw extruders.

FAQ

Q:How to choose a gearbox and gear speed reducer?

A:You can refer to our catalogue to choose a product specification or we can also recommend the model and specification after you provide the required motor power, output speed and speed ratio, etc.

Q: How can we guarantee product quality?
A:We have a strict production process control procedure and test every part before delivery.Our gear box reducer will also carry out the corresponding operation test after installation, and provide the test report. Our packing is in wooden cases specially for export to ensure the quality of transportation.
Q: Why do I choose your company?
A: a) We are one of the leading manufacturers and exporters of gear transmission equipment.
    b) Our company has made gear products for about 20 years more with rich experience and advanced technology.
    c) We can provide the best quality and best service with competitive prices for products.

Q:What's your MOQ and terms of payment?

A:MOQ is one unit.T/T and L/C are accepted,and other terms can also be negotiated.

Q: Can you supply the relevant documentation for goods?

A:Yes, we can provide most documentation including operator manual, testing report, quality inspection report, shipping insurance, certificate of origin, packing list,commercial invoice, bill of lading and other export documents .
