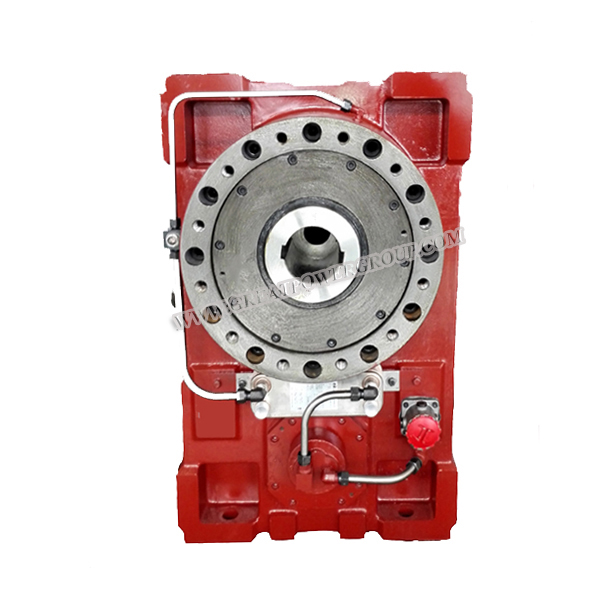

ZLYJ200/ 225/250 Single Screw Extruder Gearbox

Short Description:

ZLYJ series high torque gearbox for single screw extruder is a kind of special gearbox researched and developed by importing the most advanced technology of the hard tooth surface in the world. The gearbox has high axial thrust, output torque and power, and it is widely used in th...

Product Detail

Product Tags

Product Description
ZLYJ series high torque gearbox for single screw extruder is a kind of special gearbox researched and developed by importing the most advanced technology of the hard tooth surface in the world. The gearbox has high axial thrust, output torque and power, and it is widely used in the field of rubber and plastic extrusion.

Product Feature
1.Compact design.
2 High hardness, high toughness and high precision .
3.Low noise.
4.High axial bearing capacity.
5. High operation reliability.
6.Perfect oil leakage prevention performance.
7.Excellent heat dissipation performance.
8.Forced lubrication system with increased box surface area

Technical Parameter

Spec.(ZLYJ) Ratio Range Motor Power (KW) Input speed (RPM) Output Torque (N·M) Screw Diameter（mm）
133 6.3/8/10/12.5/14/16/18/20 10~30 ≦1500 1528~2174 Ø45/50
146 6.3/8/10/12.5/14/16/18/20 12~54 ≦1500 3183~3438 Ø55
160 6.3/8/10/12.5/14/16/18/20 14~59 ≦1500 3700~3838 Ø65
180 6.3/8/10/12.5/14/16/18/20 23~97 ≦1500 5600~6600 Ø65
200 6.3/8/10/12.5/14/16/18/20 33~110 ≦1500 7100~8400 Ø75
225 6.3/8/10/12.5/14/16/18/20 43~170 ≦1500 10792~11352 Ø90
250 6.3/8/10/12.5/14/16/18/20 54~208 ≦1500 12961~13752 Ø100
280 6.3/8/10/12.5/14/16/18/20 88~330 ≦1500 21010~22738 Ø105/Ø110
320 6.3/8/10/12.5/14/16/18/20 128~455 ≦1500 28968-32597 Ø120
360 6.3/8/10/12.5/14/16/18/20 156~633 ≦1500 35559~42338 Ø130/150

Application
ZLYJ series high torque gearbox is widely used in rubber tires, wire and cable, hole forming,pipes, wires,rubber for conveyor belts,plastic films/sheets e.g. packaging films, tote bags, outdoor tarps, packaging materials, thermal insulation board (polystyrene).

FAQ

Q:How to choose a gearbox and gear speed reducer?

A:You can refer to our catalogue to choose a product specification or we can also recommend the model and specification after you provide the required motor power, output speed and speed ratio, etc.

Q: How can we guarantee product quality?
A:We have a strict production process control procedure and test every part before delivery.Our gear box reducer will also carry out the corresponding operation test after installation, and provide the test report. Our packing is in wooden cases specially for export to ensure the quality of transportation.
Q: Why do I choose your company?
A: a) We are one of the leading manufacturers and exporters of gear transmission equipment.
    b) Our company has made gear products for about 20 years more with rich experience and advanced technology.
    c) We can provide the best quality and best service with competitive prices for products.

Q:What's your MOQ and terms of payment?

A:MOQ is one unit.T/T and L/C are accepted,and other terms can also be negotiated.

Q: Can you supply the relevant documentation for goods?

A:Yes, we can provide most documentation including operator manual, testing report, quality inspection report, shipping insurance, certificate of origin, packing list,commercial invoice, bill of lading,etc.
