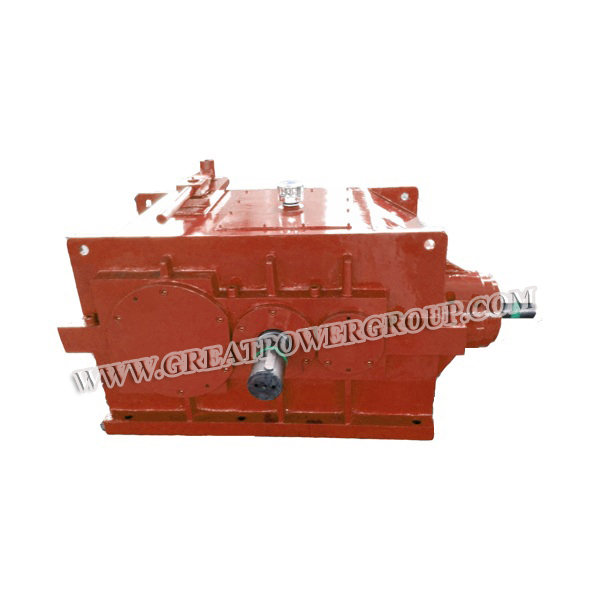

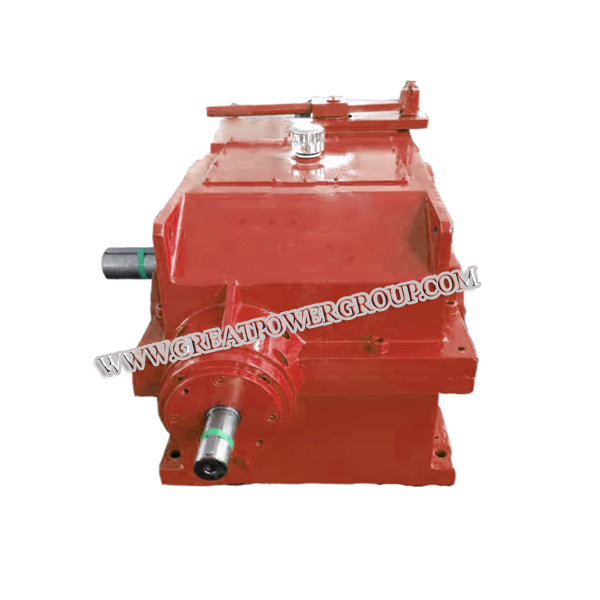

DBYK280/312 Bevel And Cylindrical Gear Reducer

Short Description:

Product DescriptionDBYK Series Bevel andCylindrical Gear Reduceris the outer meshing gears transmission structure of input and output axis in a vertical state, the main transmission parts adopt high-quality alloy steel to manufacture. The gears are made of top-grade low carbon alloy steel with Grade...

Product Detail

Product Tags

Product Description
DBYK Series Bevel and Cylindrical Gear Reducer is the outer meshing gears transmission structure of input and output axis in a vertical state, the main transmission parts adopt high-quality alloy steel to manufacture. The gears are made of top-grade low carbon alloy steel with Grade 6 precision of teeth after carburizing, quenching, and grinding process manufacturing.
Product Feature
1.High loading capacity.
2. Long life.
3. Small volume.
4. High efficiency.
5. Light weight.

Main Parameter

NoTypeInput Power    (kW)Driving Ratio     (i)Input Speed (r/min)Output Speed              (r/min)
1DBYK16023~818~14750~150053~188
2DBYK18031~1158~14750~150053~188
3DBYK20038~1458~14750~150053~188
4DBYK22460~2058~14750~150053~188
5DBYK25080~3208~14750~150053~188
6DBYK280115~4358~14750~150053~188
7DBYK315145~6108~14750~150053~188
8DBYK355235~7508~14750~150053~188
9DBYK400310~10808~14750~150053~188
10DBYK450400~16808~14750~150053~188
11DBYK500510~21008~14750~150053~188
12DBYK560690~22008~14750~150053~188

Application
It is mainly used in belt conveyors and other conveying equipment of metallurgy, coal mine, chemical engineering, building materials, light industry, petroleum, etc.
