F Series Parallel Shaft Helical Gear Speed Reducer

Short Description:

Product DescriptionF series gear speed reducersare helical gear transmission components. The shafts of this product are parallel to each other and consist of two-stage or three-stage helical gears. All gears are carburized, quenched, and finely ground. The gear pair has stable running, low noise, an...

Product Detail

Product Tags

Product Description
F series gear speed reducers are helical gear transmission components. The shafts of this product are parallel to each other and consist of two-stage or three-stage helical gears. All gears are carburized, quenched, and finely ground. The gear pair has stable running, low noise, and high transmission efficiency.

Product feature
1. Highly modular design: It can be easily equipped with various types of motors or other power inputs. The same model can be equipped with motors of multiple powers. It is easy to realize the combined connection between various models.
2. Transmission ratio: fine division and wide range. Combined models can form a large transmission ratio, that is, output extremely low speed.
3. Installation form: the installation location is not restricted.
4. High strength and small size: the box body is made of high-strength cast iron. The gears and gear shafts adopt the gas carburizing quenching and fine grinding process, so the load capacity per unit volume is high.
5. Long service life: Under the conditions of correct model selection (including selection of appropriate use coefficient) and normal use and maintenance, the life of the main parts of the reducer (except for wearing parts) is generally not less than 20,000 hours. The wearing parts include lubricating oil, oil seals and bearings.
6. Low noise: The main parts of the reducer have been precision processed, assembled and tested, so the reducer has low noise.
7. High efficiency: the efficiency of a single model is not less than 95%.
8. It can bear larger radial load.
9. It can bear an axial load not greater than 15% of the radial force.

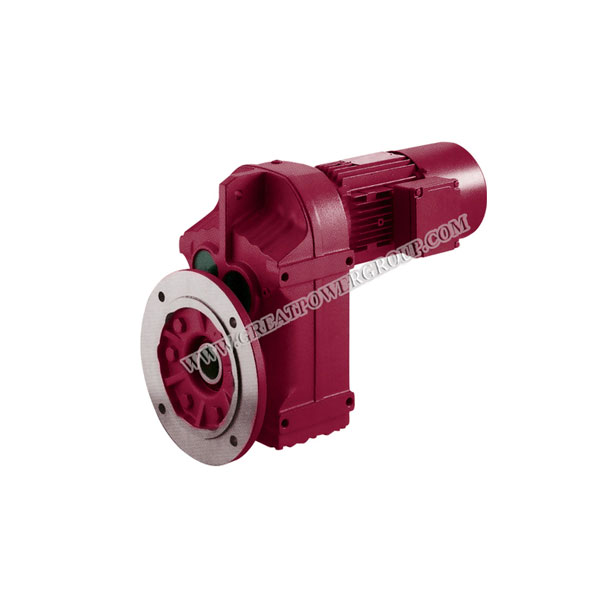

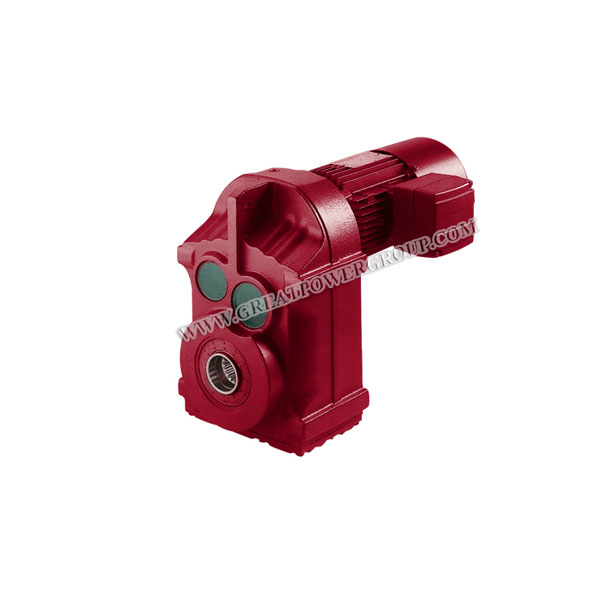

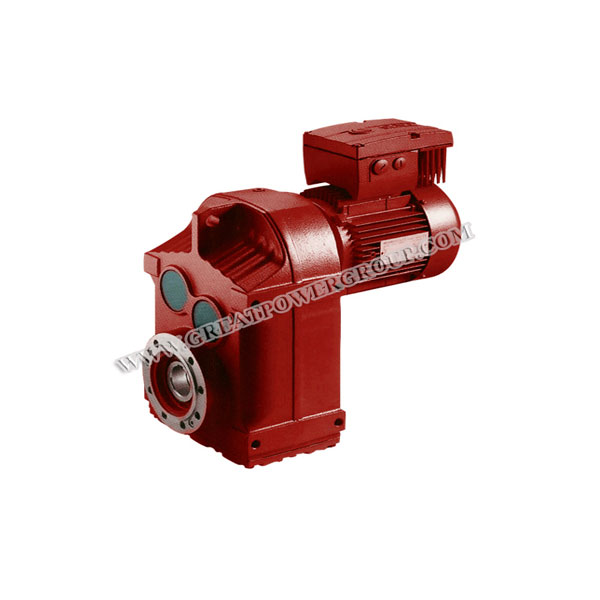

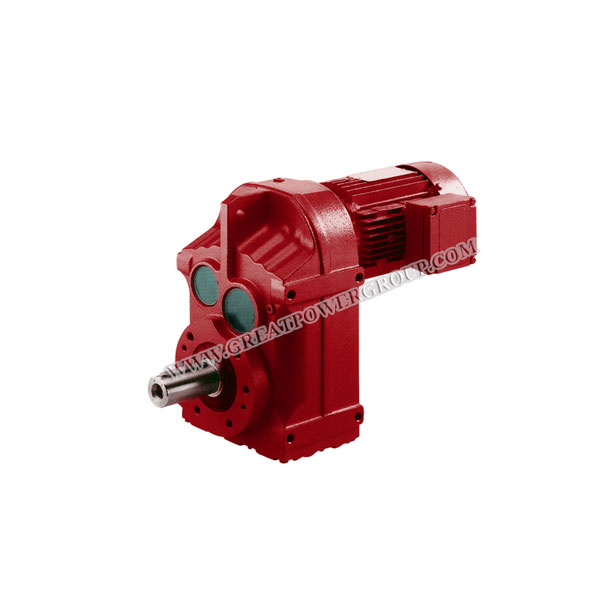

The extremely small F series helical gear motor is equipped with a parallel shaft for shaft mounting, which is very suitable for use under restricted conditions. There are foot mounting, flange mounting and shaft mounting types.

Technical Parameter
Output Speed (r/min): 0.1-752
Output Torque (N.m) :18000 highest
Motor Power (kW) :0.12-200

Application
F series gear speed reducers are widely used in metallurgy, mining, building materials, petroleum, chemical, food, packaging, medicine, electric power, environmental protection, lifting and transportation, shipbuilding, tobacco, rubber and plastics, textiles, printing and dyeing, wind power and other mechanical equipment fields.
